BTE-800
Category
Man carrier
Capacity
8 passengers (10 total)
Configuration

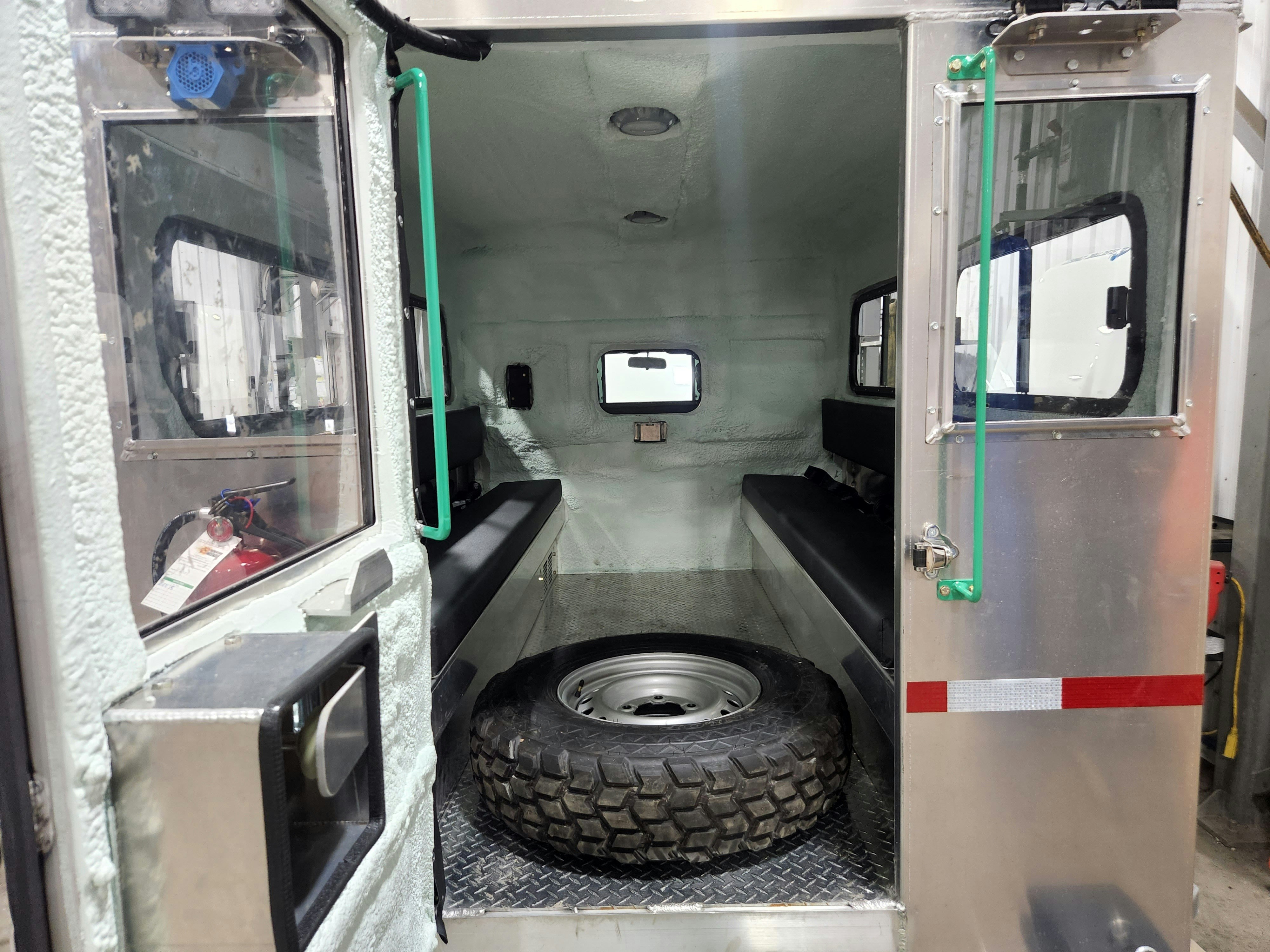

Rear cab
- Closed
- Insulated
- Heated
- With storage compartments under the seats, accessible via foldable seats
- Made of aluminum
Front cab
- Closed
- Heated
With A/C (optional)
- FOPS Niv. 2 (optionnel)
- FOPS/ROPS Niv. 2 (optionnel)
Description

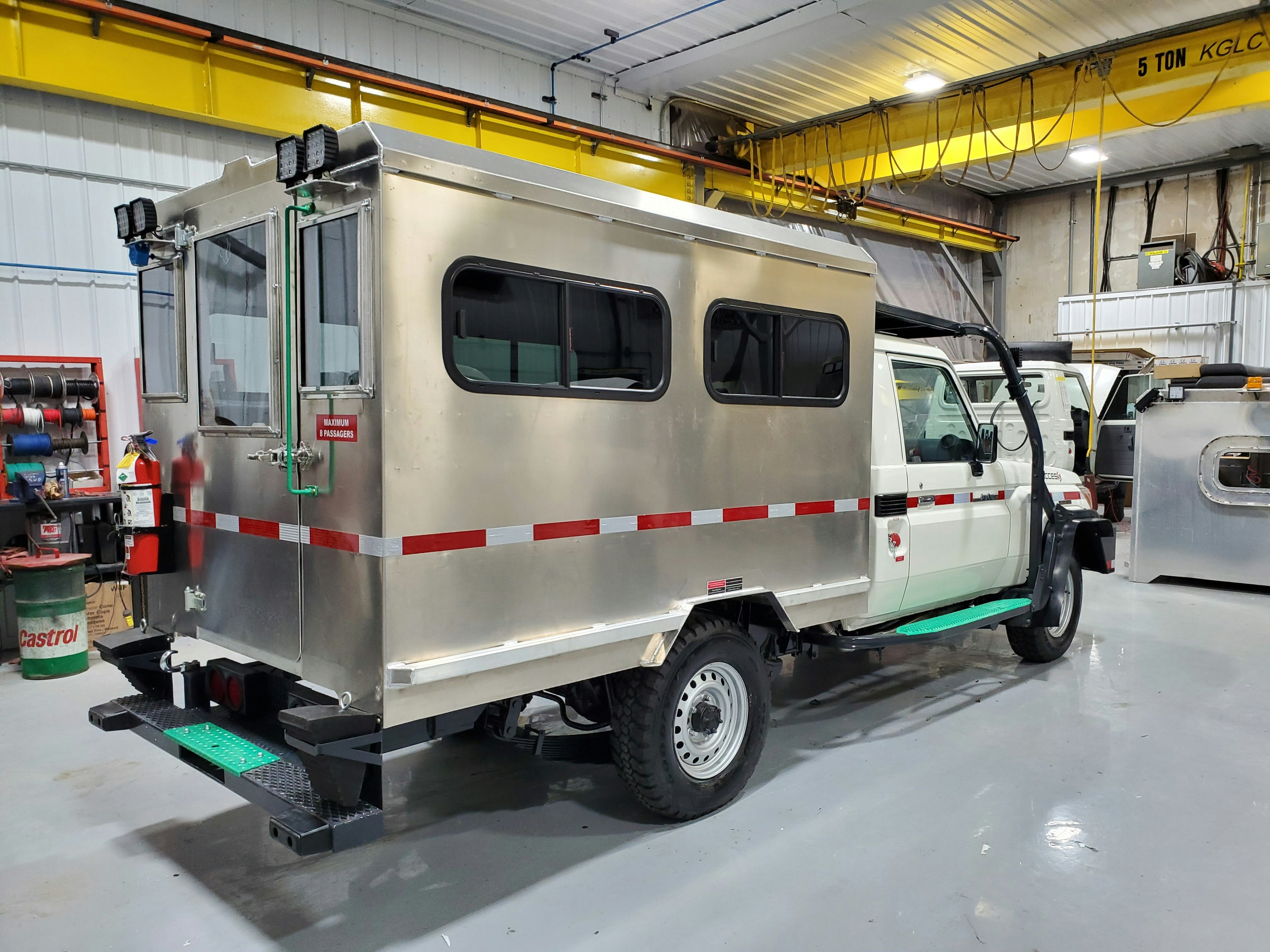

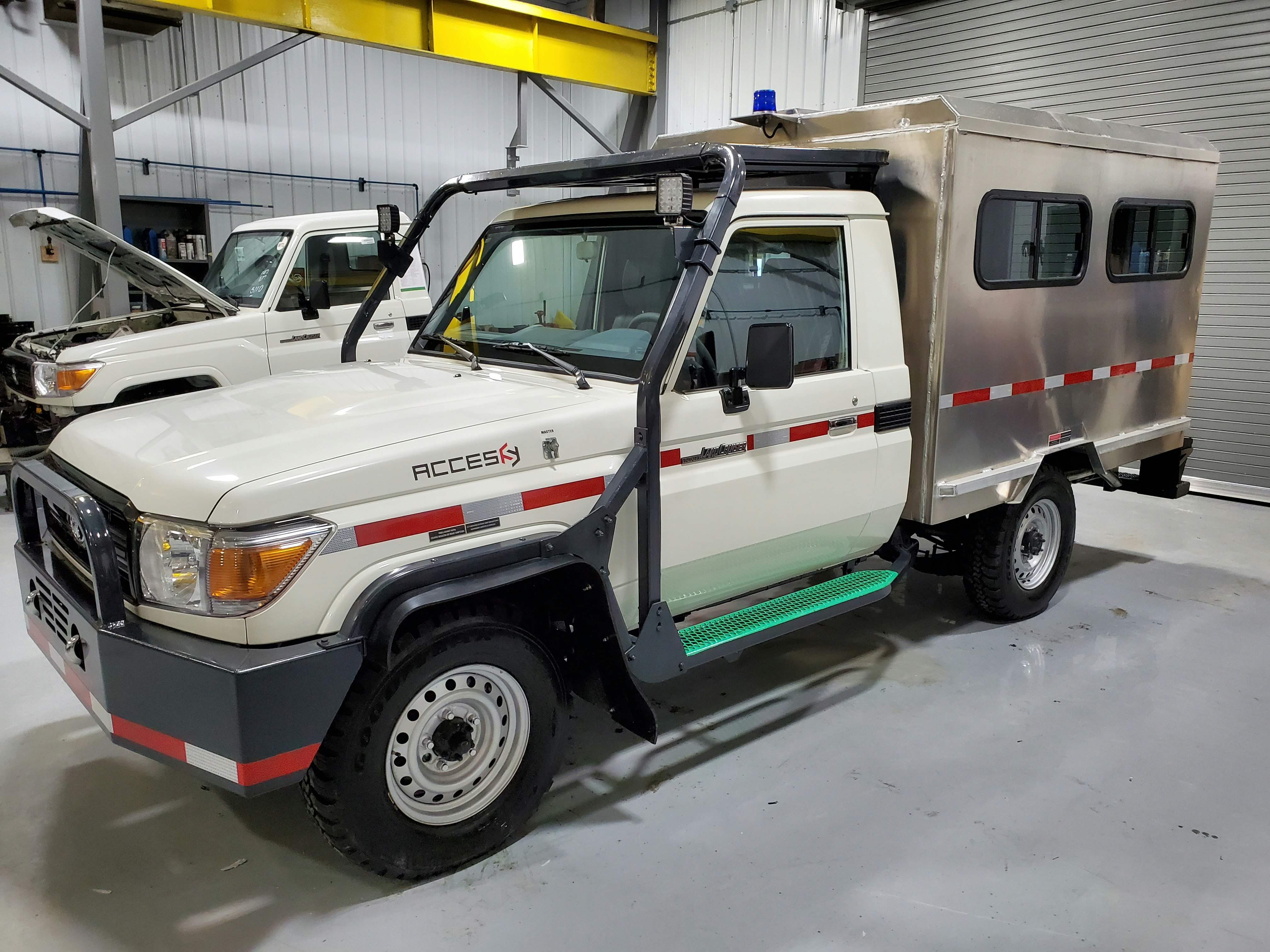

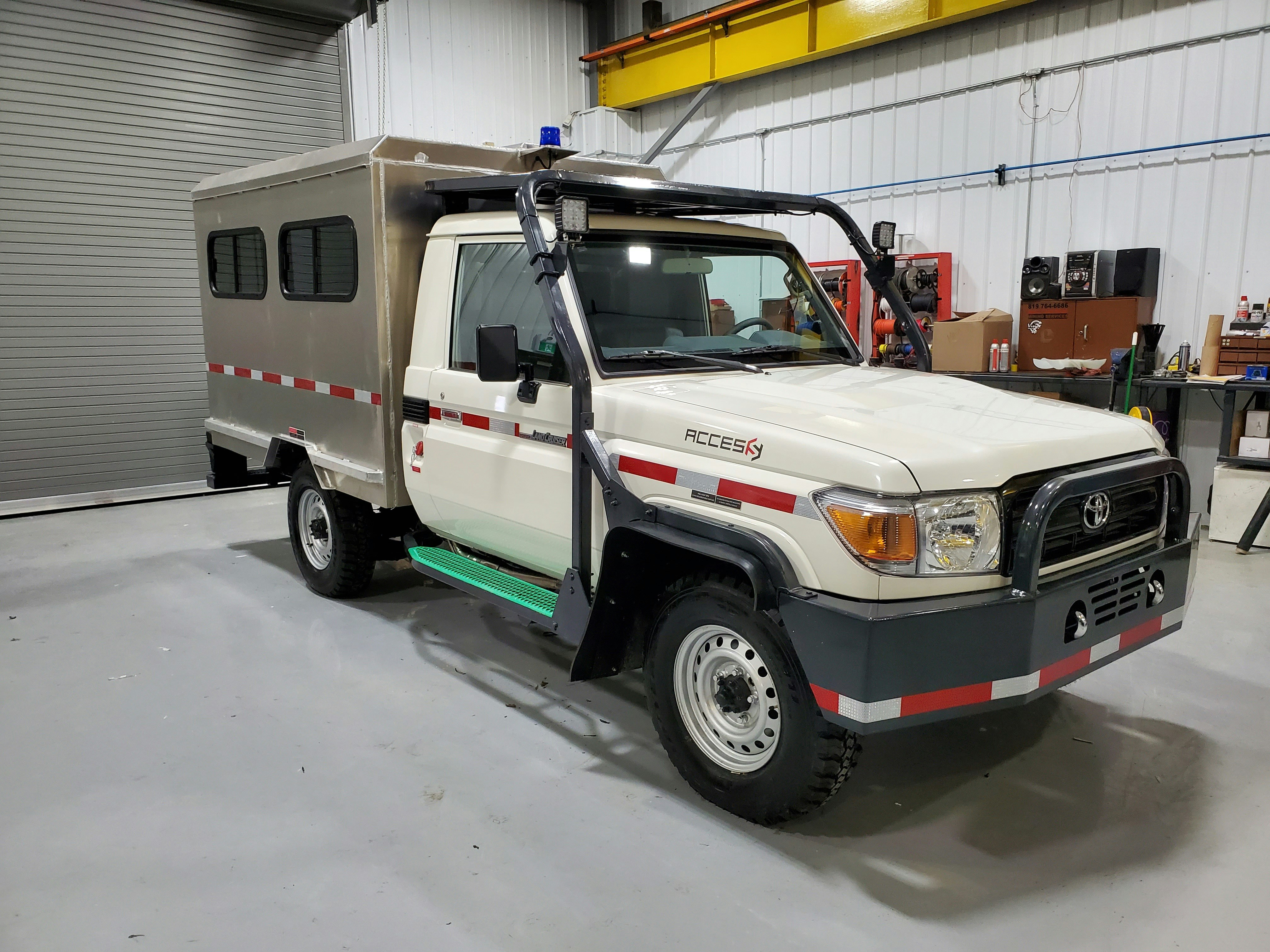

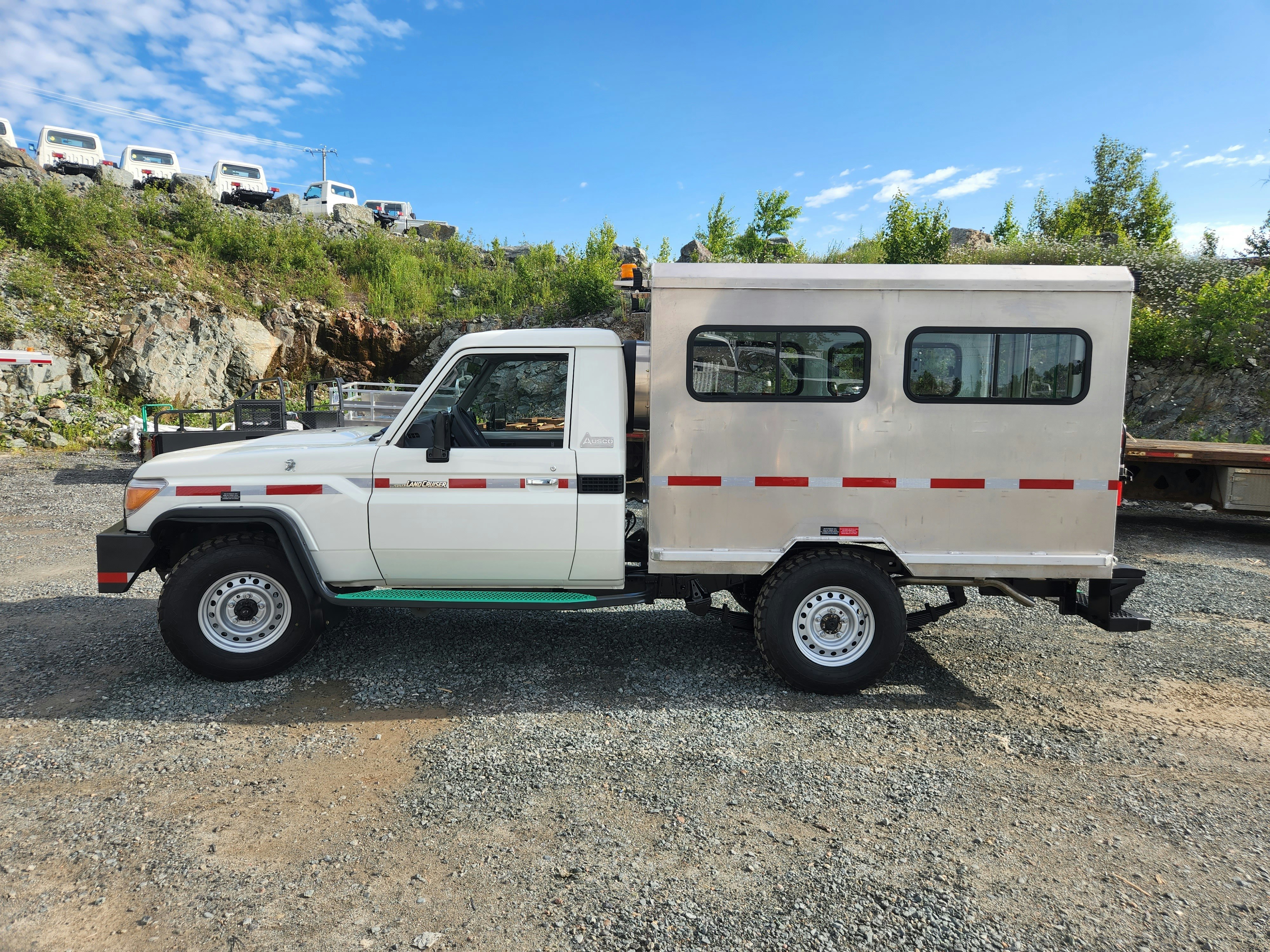

The Toyota Land Cruiser BTE-800, just as durable, shares the same setup as the BTE-815 model. Providing a more cost-effective option, it doesn't have FOPS/ROPS certifications but remains specialized in personnel transport under constant cold conditions.
Pre-modifications specifications
| Model code | HZJ79, 4WD |
|---|---|
| Capacity | 1 t |
| Engine | 1HZ 6 cylinder (CANMET certified #949) |
| Torque | 207 lb-ft @ 4000 RPM |
| Transmission | 5-speed manual (R151) |
| Factory front brakes | Disc brakes (322 X 32 mm) |
| Factory rear brakes | Drum brakes (295 mm) |
| Factory tires | 7.50 x 16, 8-ply rating, off-road, mounted on 1-piece rims |
| Gross vehicle weight rating (GVWR) | 3,200 kg (7,054 lbs) |
| Front gross axle weight rating (GAWR) | 1,460 kg (2,866 lbs) |
| Rear gross axle weight rating (GAWR) | 2,300 kg (5,071 lbs) |
| Factory front suspension | Coil springs |
| Factory rear suspension | Semi-elliptical leaf springs |
| Steering | Power assisted recirculating ball |
| Towing capacity | 750 kg (1,650 lbs) or 3,500 kg (7,700 lbs) with trailer brakes |
| Length | 220 in |
| Width | 84 in |
To learn more about this model
Contact us and we can guide you through the next steps and the selection of your options.
Daniel
Shawn
Discover what we add to each of our Toyota Land Cruiser
Heavy duty front & rear bumpers and side steps
10 lbs ABC fire extinguisher with holder
Reinforced rear differential
Neutral switch
Sealed cable glands
Steering stops
Fuel tank cap with chain
Lockable main master switch
80 AMP OEM Alternator
Back-up alarm
Safety 3 point contact painted in green
Top Gun seat covers
4 Tow hooks
Rust proof treatment
Block heater
Exhaust purifier
Hour meter
Spare tire
Door straps
Certified anchorage points for safety belts in all personnel carriers
Mud guards
Extended differential breather
High intensity LED working lights
x2 front + x2 back
Fluid caps painted red
Terminal box for add-on accessories
Wheel chocks with holder
Lamacoid identifications
Customize your Toyota Land Cruiser to your needs with several options
The options shown are not all compatible with the model displayed. Contact our experts to confirm compatibility.
Open all
Front cab A/C
Rear cab A/C
Rear cab heating
Blinking front lights with horn
Standard 7″ backup camera
Premium 7″ backup camera
Sliding windows
Fixed standard windows
Airplane style 2-point seatbelts
Orange 3-point seatbelts
12V DC dash output
Radio/CB installation in vehicle
Heated mirrors
Smooth padding finish in rear cab
Folding benches
Infrared cameras
Detachable seats back
To enable passengers wearing oxygen tanks
Custom paint options
Reinforced frame
Line-X coated frame
Level 2 FOPS/ROPS certification for front cab
Steel structure
Level 2 FOPS certification for front cab
Steel structure
FOPS/ROPS for front cab integrated in rear cab
Aluminum structure
Fuel deflector
Auto-eject plug
Vise
Welding tank rack
Sliding window cab
Hydraulic lift tailgate
Battery protector
Murphy engine protection
Protective floor plates for cab
20 lbs ABC type fire extinguisher with holder
Automatic fire suppression system
Guard for fire suppression system
Programmable speed limiter
Extended pressure switch
Fuel line isolation valve
Gas test output & extension
Active DPF
Additional 12V battery with isolator
Battery warmer
Insulated cable holder on chassis
110 Amp alternator for additional accessories
Block heater outlet at rear of vehicle
Oil pan heater
Inverter
Special heavy duty
Increased capacity
Heavy duty 14-leaf springs
Gear locked 3,4,5
Gear locked 4,5
Gear locked 5
Transfer case locked
In high or low speed
OEM 7.50/R16
6 ply
Goodyear G971 LT 235/85/R16
10 ply
Goodyear G971 LT 215/85/R16
10 ply
Toyo M55 LT 235/85/R16
10 ply
Toyo M55 LT 245/75/R16
10 ply
Yokohama G015 LT 285/75/R16
10 ply
Fog lights
Lighted Pole & Flag
Multiple set possibilities
Single, double, triple
Multiple colors
Clear, blue, ambre, red, yellow, etc.
Multiple types
Horizontal, vertical and/or oblique lighting
Multiple plugged configurations
Directly on master, Directly on battery, Directly on a second battery with isolator or On switch on battery
Important notice
While all the data on this page has been verified by our team, some incomplete and/or incorrect data may be present. If you notice any such instances, please contact us.
The customization options presented on this page are not all compatible with the model shown on this page. To validate the compatibility of each option presented, please contact us.
